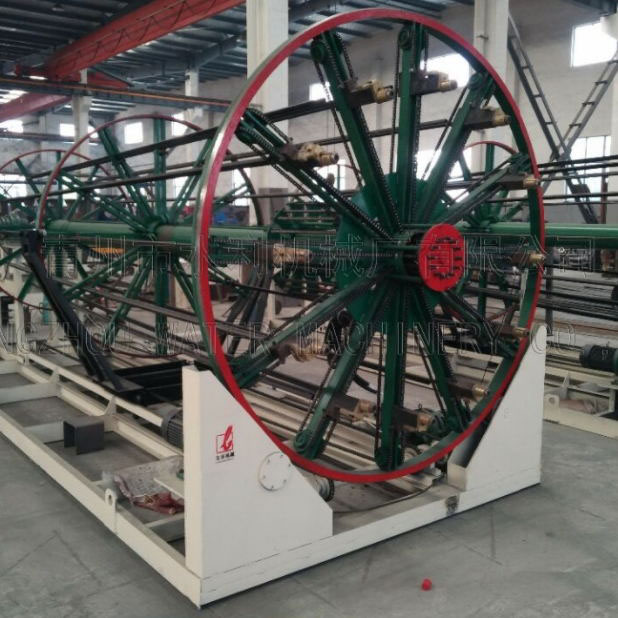

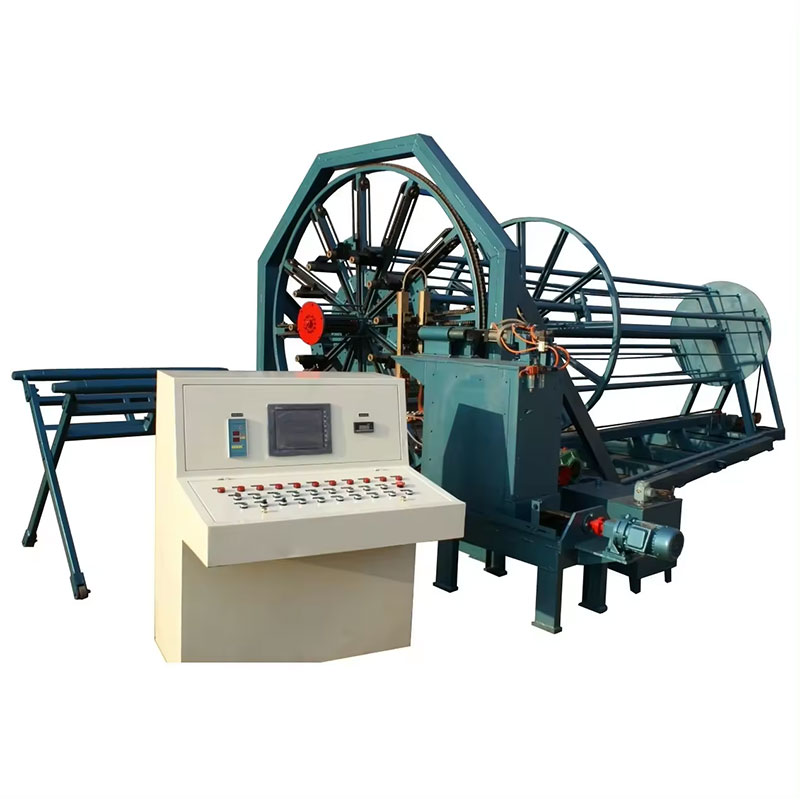

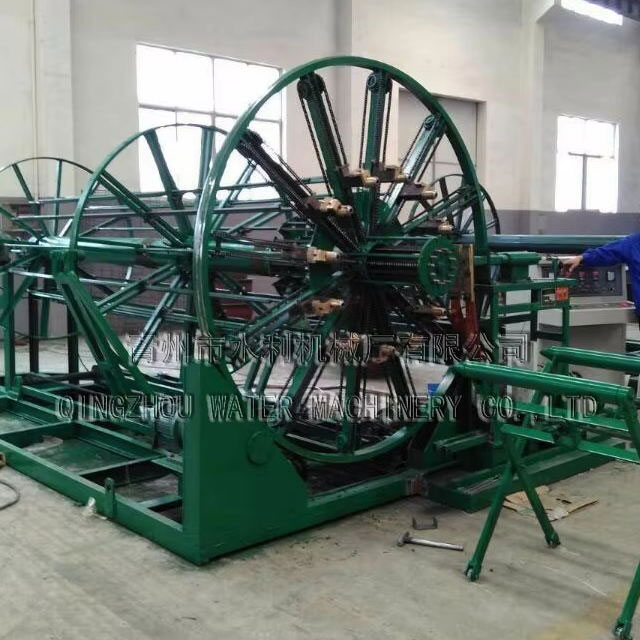

Steel Skeleton Cage Welding Machine

BaoLai Brand steel skeleton cage welding machine adopts the propulsion way, and it has automatic diameter changing ability. It is both for flat joint and socket&spigot joint, the angle of the socket is adjustable. The electrical system is digital controlled,can be used to synchronize different proportional controls and frequency conversion rates to improve the machine accuracy.

Model:Model HGZ 1500 Automatic Steel Rolling Welding Machine

Send Inquiry

Product Description

It is proven by customers using that this steel skeleton cage welding machine is stable, reliable,diameters changing accurate and fast,easy to use and with high production efficient.It is one of the best choices you might have starting your own pipe making product line.

Baolai Brand Steel Skeleton Cage Welding Machine Parameters:

For internal diameter ranged from 300-1500mm, length ranged from 1000-4000mm.

BaoLai Brand Full Automatic Steel Rolling Welding Machine ModelHGZ 1500
Applicable to Pipe diameter（mm)	Φ300-1500 socket&spigot joint
	Φ300-1500 flat joint
Maximum Welding Length（mm)	4200
Steel types（mm)	Annular SteelΦ3.5-6
	Vertical SteelΦ4-6
Vertical Steel Number	12
Annular Steel Distance（mm)）	20-150
Angle of the Socket Joint	10-25
Main Plate Speed（r/min）	0-10
Motor Power（kw）	0.75kw Expanding Motor+0.75kw following motor1.1kw Vertical Steel Push Motor+2.2kw Main Plate Power Motor
Welding Machine Transformer（kw）	Transformer Power Rate100kw

This steel skeleton cage welding machine could be used in making steel reinforced frame for concrete pipes, this model HGZ 1500, for internal diameter ranged from 300-1500mm, length ranged from 1000-4000mm, our own steel frame rolling welding machine makes perfect match with our own steel molds, which make sure of the perfection of the pipes. It is fully automatic and very easy to operate, its capacity could reach 60-120 meters per hours,and the pitch is adjustable.

It has a touch screen for operating and it save data for hundreds of specifications.
